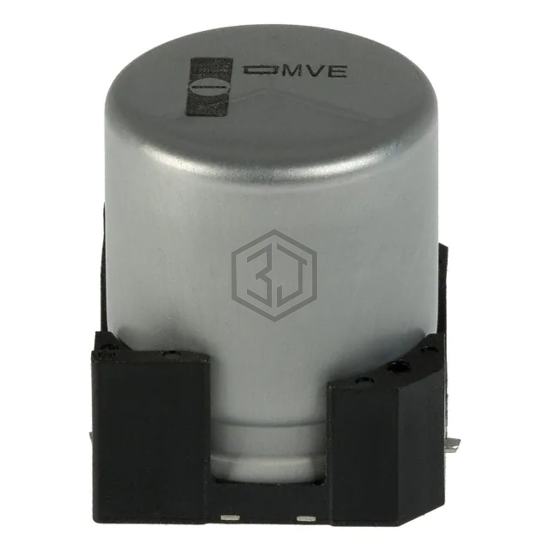

CAP ALUM 3300UF 20% 16V SMD
EMVE160GDA332MMH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3300UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 2,843
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225099516E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V SMD | 99% | View |
| VZH332M1CTR-1621S | Surge | CAP ALUM 16V POLAR | 98% | View |
| UUJ1A332MNQ6ZD | Nichicon | CAP ALUM 3300UF 20% 10V SMD | 75% | View |
| EEV-FK1E332V | Panasonic Electronic Components | CAP ALUM 3300UF 20% 25V SMD | 73% | View |
| MVY25VD332MM22TR | United Chemi-Con | CAP ALUM 3300UF 20% 25V SMD | 71% | View |
| EEV-FK0J332Q | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V SMD | 59% | View |
Submit your RFQ for EMVE160GDA332MMH0S and get a quote within 24 hours.
