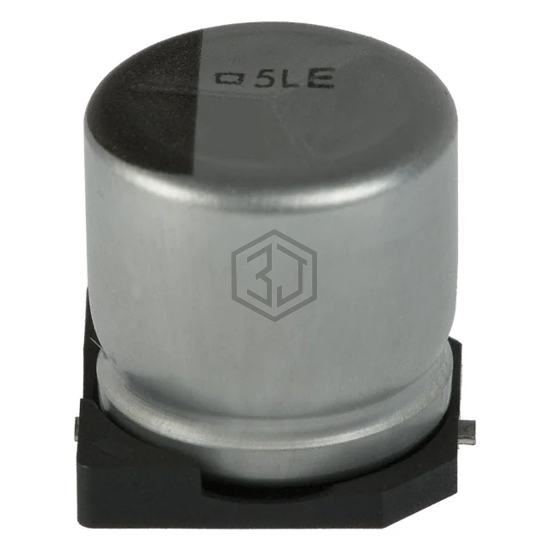

CAP ALUM 680UF 20% 16V SMD
EMVE160ADA681MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,451
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 470 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZA160ARA681MJA0G | Chemi-Con | CAP ALUM 680UF 20% 16V SMD | 97% | View |
| EEV-FK1C681GP | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 90% | View |
| EEE-FP1C681AP | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 84% | View |
| UCD1A681MNL1GS | Nichicon | CAP ALUM 680UF 20% 10V SMD | 77% | View |
| EMVE6R3ADA681MHA0G | United Chemi-Con | CAP ALUM 680UF 20% 6.3V SMD | 61% | View |
| EEV-FK1V681V | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V SMD | 53% | View |
