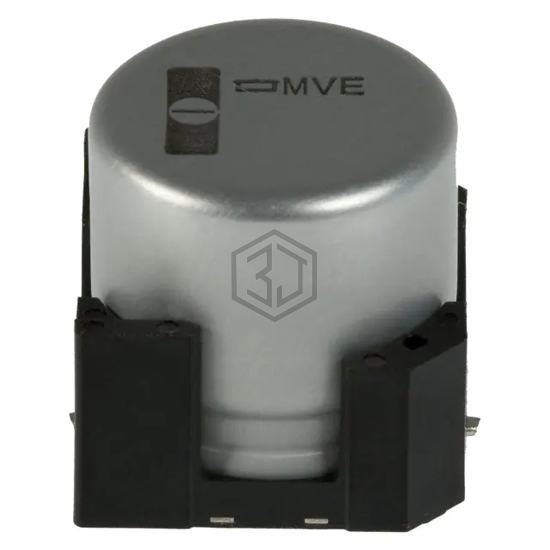

CAP ALUM 2200UF 20% 10V SMD
EMVE100GDA222MLH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,218
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK228M10H32T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 10V SMD | 99% | View |
| UUE1A222MNS6MS | Nichicon | CAP ALUM 2200UF 20% 10V SMD | 93% | View |
| EMVY160ARA222MLH0S | Chemi-Con | CAP ALUM 16V POLAR | 77% | View |
| MAL224699506E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V SMD | 76% | View |
| EEV-TG1C222UM | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V SMD | 75% | View |
| MAL214699607E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V SMD | 61% | View |
Submit your RFQ for EMVE100GDA222MLH0S and get a quote within 24 hours.
