CAP ALUM 4700UF 20% 6.3V SMD

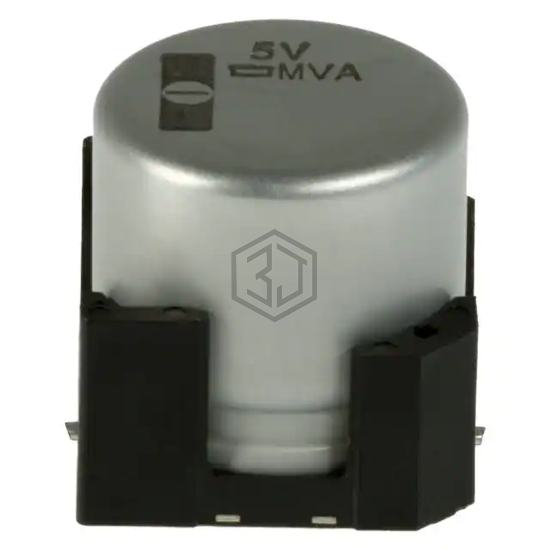

EMVA6R3GDA472MLH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,303
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.512 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVA6.3VE472ML17TP | United Chemi-Con | CAP ALUM 4700UF 20% 6.3V SMD | 100% | View |
| EMVY100GDA472MLN0S | United Chemi-Con | CAP ALUM 4700UF 20% 10V SMD | 84% | View |
| 10SEV4700M16X21.5 | Rubycon | CAP ALUM 4700UF 20% 10V SMD | 81% | View |
| UUJ1A472MNJ1MS | Nichicon | CAP ALUM 4700UF 20% 10V SMD | 80% | View |
| EEE-FK1C432SM | Panasonic Electronic Components | CAP ALUM 4300UF 20% 16V SMD | 71% | View |
| EEE-FK1C432SV | Panasonic Electronic Components | CAP ALUM 4300UF 20% 16V SMD | 71% | View |
Submit your RFQ for EMVA6R3GDA472MLH0S and get a quote within 24 hours.
