CAP ALUM 0.22UF 20% 63V SMD

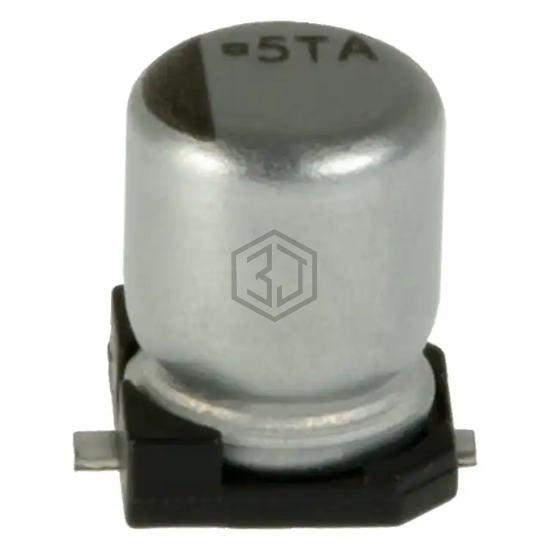

EMVA630ADAR22MD55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 0.22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 6,476
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EMVA630ADAR22MD55G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVA63VCR22RMD55TP | United Chemi-Con | CAP ALUM 0.22UF 20% 63V SMD | 100% | View |
| 865230640002 | Würth Elektronik | CAP ALUM 0.22UF 20% 50V SMD | 86% | View |
| UUT1HR22MCL1GS | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 85% | View |
| UWX1HR22MCR1GB | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 85% | View |
| UWT1HR22MCL1GB | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 85% | View |
| 865250640002 | Würth Elektronik | CAP ALUM 0.22UF 20% 50V SMD | 77% | View |
Submit your RFQ for EMVA630ADAR22MD55G and get a quote within 24 hours.
