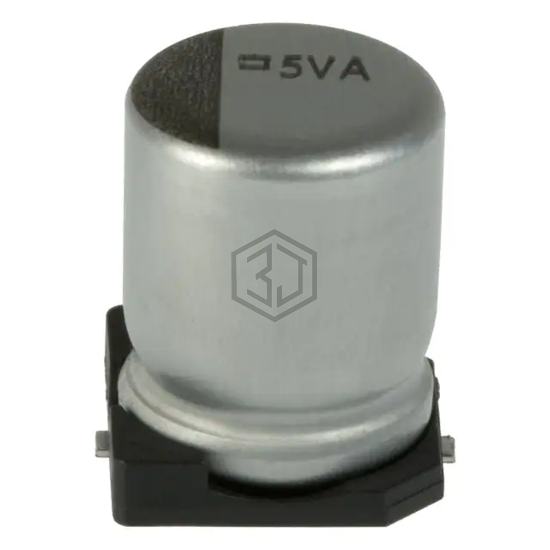

CAP ALUM 47UF 20% 63V SMD
EMVA630ADA470MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 6,454
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HB1H470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 50V SMD | 82% | View |
| AEA1010470M080R | KYOCERA AVX | ALUMINUM CAP | 73% | View |
| EEV476M6R3A9DAA | KEMET | CAP ALUM 47UF 20% 6.3V SMD | 72% | View |
| MAL215371479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 50V SMD | 70% | View |
| UCM1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 64% | View |
| EEE-TG1E470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 54% | View |
Submit your RFQ for EMVA630ADA470MHA0G and get a quote within 24 hours.
