CAP ALUM 22UF 20% 50V SMD

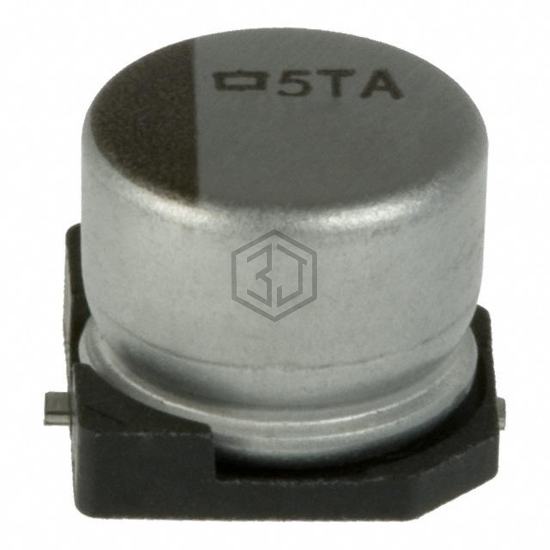

EMVA500ADA220MF55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50.76 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVK500ADA220MH63G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 87% | View |
| AHD226M50E16B | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 86% | View |
| 16SEV22M5X5.5 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 71% | View |
| UZT1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 70% | View |
| 226SML016MD4 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V SMD | 65% | View |
| UUA0J220MCL1GS | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 50% | View |
Submit your RFQ for EMVA500ADA220MF55G and get a quote within 24 hours.
