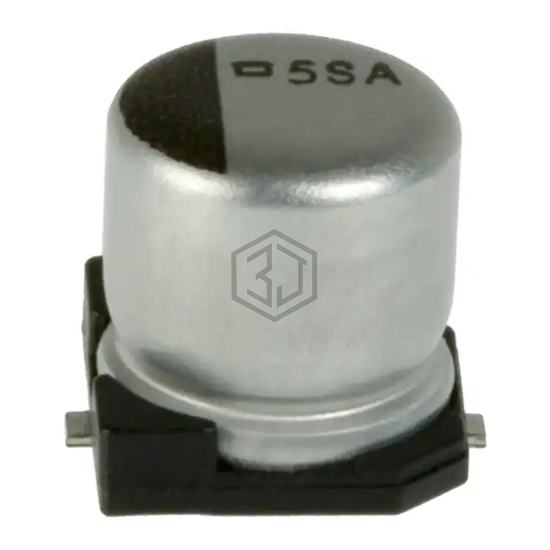

CAP ALUM 10UF 20% 50V SMD
EMVA500ADA100ME55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,583
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 45 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50JEV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 100% | View |
| EMVA500ARA100ME55G | Chemi-Con | CAP ALUM 10UF 20% 50V SMD | 100% | View |
| EEE-1EA100NP | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V SMD | 76% | View |
| EDK106M035S9BAA | KEMET | CAP ALUM 10UF 20% 35V SMD | 74% | View |
| EEE-FN1K100XL | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 73% | View |
| UUL1E100MCL1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 70% | View |
Submit your RFQ for EMVA500ADA100ME55G and get a quote within 24 hours.
