CAP ALUM 470UF 20% 25V SMD

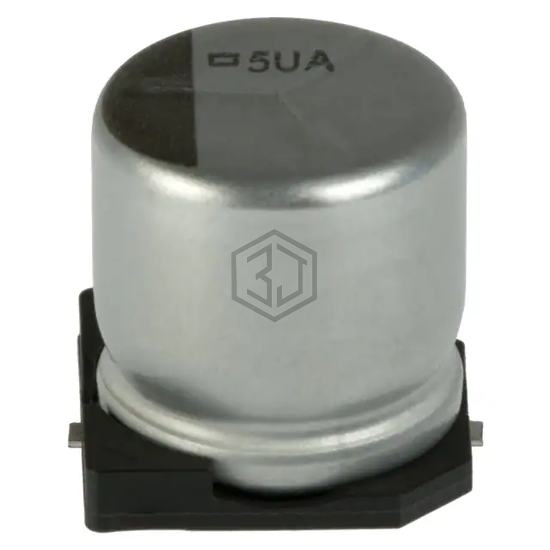

EMVA250ADA471MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,098
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 432 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVE25VC471MJ10TP | United Chemi-Con | CAP ALUM 470UF 20% 25V SMD | 93% | View |
| 25SGV470M10X10.5 | Rubycon | CAP ALUM 470UF 20% 25V SMD | 88% | View |
| EMVH160ARA471MKE0S | United Chemi-Con | CAP ALUM 470UF 20% 16V SMD | 72% | View |
| EMVA160ADA471MHA0G | United Chemi-Con | CAP ALUM 470UF 20% 16V SMD | 69% | View |
| MAL216099807E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V SMD | 68% | View |
| UUE1A471MNS1MS | Nichicon | CAP ALUM 470UF 20% 10V SMD | 60% | View |
Submit your RFQ for EMVA250ADA471MJA0G and get a quote within 24 hours.
