CAP ALUM 68UF 20% 100V SMD

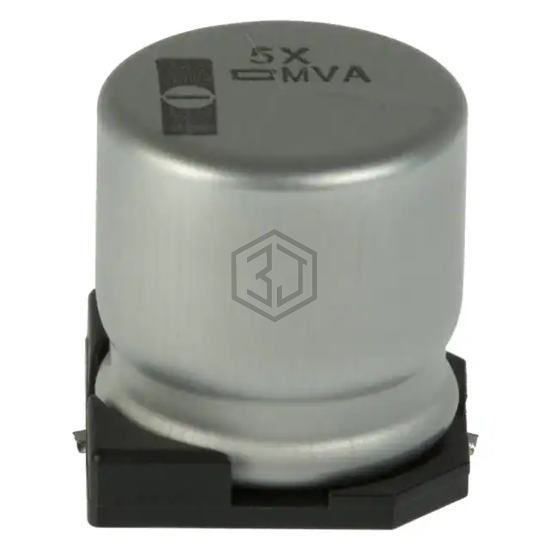

EMVA101ARA680MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 68UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 9,742
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 684 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865060862006 | Würth Elektronik | CAP ALUM 68UF 20% 100V SMD | 96% | View |
| MVY100VC68RMK14TP | United Chemi-Con | CAP ALUM 68UF 20% 100V SMD | 86% | View |
| EEE-FK1K680AV | Panasonic Electronic Components | CAP ALUM 68UF 20% 80V SMD | 85% | View |
| EXV686M050S9PAA | KEMET | CAP ALUM 68UF 20% 50V SMD | 73% | View |
| UUG2E680MNQ6MS | Nichicon | CAP ALUM 68UF 20% 250V SMD | 70% | View |
| MAL215097802E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V SMD | 65% | View |
Submit your RFQ for EMVA101ARA680MKE0S and get a quote within 24 hours.
