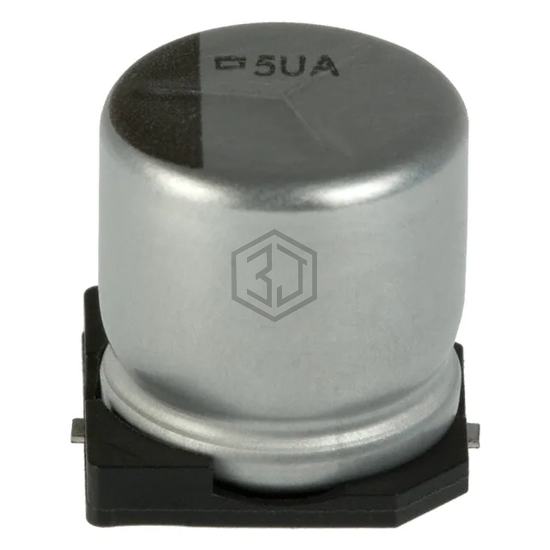

CAP ALUM 2.2UF 20% 400V SMD
EMKB401ADA2R2MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2.2UF 20% 400V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - SMD.
In Stock: 2,037
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 20Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26 mA @ 120 Hz |
| Ripple Current @ High Frequency | 39 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219299601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 400V SMD | 81% | View |
| UWG1V2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 35V SMD | 65% | View |
| CD050M2R2C06PE50V00A | Suscon | CAP ALUM 2.2UF 20% 50V SMD | 64% | View |
| UE225M050HCHTA | Aillen | CAP ALUM 2.2UF 20% 50V SMD | 63% | View |
| UWG1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 59% | View |
| EXV225M050A9BAA | KEMET | CAP ALUM 2.2UF 20% 50V SMD | 57% | View |
