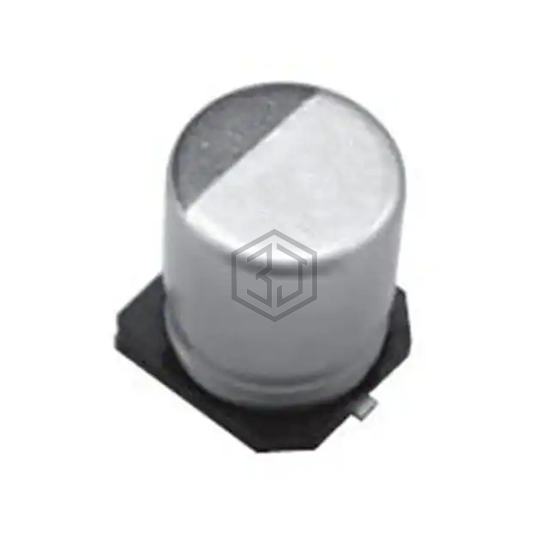

CAP ALUM 680UF 20% 10V SMD
EMHL100ARA681MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 409.2 mA @ 120 Hz |
| Ripple Current @ High Frequency | 440 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EMHL100ARA681MJA0G and get a quote within 24 hours.
