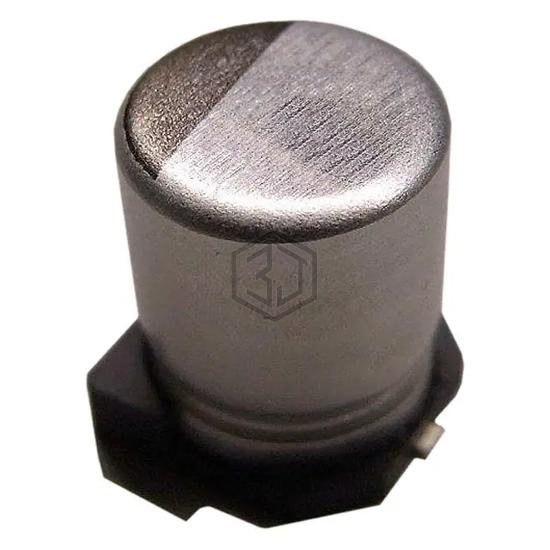

CAP ALUM 47UF 20% 35V SMD
EMHJ350ADA470MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,109
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUX470M1VTR-0810S | Surge | CAP ALUM 35V POLAR | 93% | View |
| EEE-TQV470XAP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 84% | View |
| VUX470M1HTR-0810S | Surge | CAP ALUM 50V POLAR | 82% | View |
| EEV-TG1H470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 50V SMD | 78% | View |
| 476UVK050MGE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 50V SMD | 77% | View |
| AEH1010470M080R | KYOCERA AVX | ALUMINUM CAP | 62% | View |
