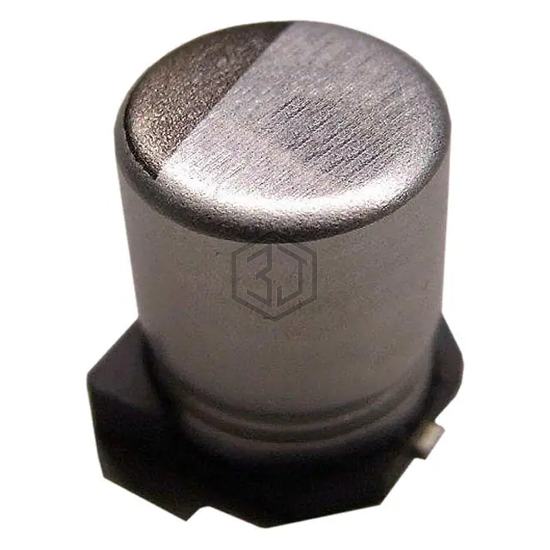

CAP ALUM 330UF 20% 10V SMD
EMHJ100ADA331MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,766
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 275 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCX1A331MCL1GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 95% | View |
| EEE-TC1E331UV | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 71% | View |
| EEV-TG2A331M | Panasonic Electronic Components | CAP ALUM 330UF 20% 100V SMD | 70% | View |
| MAL216099002E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V SMD | 66% | View |
| UCJ1E331MCL1GS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 64% | View |
| EEV-TG1V331Q | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 55% | View |
Submit your RFQ for EMHJ100ADA331MJA0G and get a quote within 24 hours.
