CAP ALUM 330UF 20% 25V SMD

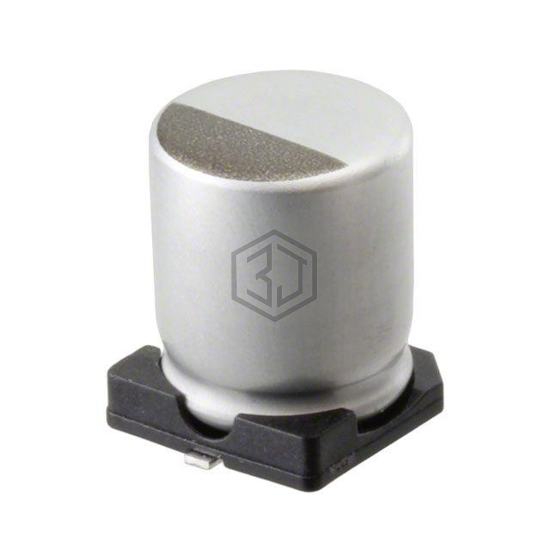

EMHB250ADA331MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 400kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 306.9 mA @ 120 Hz |
| Ripple Current @ High Frequency | 330 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDT337M025A9PAA | KEMET | CAP ALUM 330UF 20% 25V SMD | 81% | View |
| EEE-TC1C331UP | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 78% | View |
| UCH1V331MCL1GS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 75% | View |
| EEE-TP1C331AP | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 75% | View |
| EMHL100ARA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 10V SMD | 74% | View |
| MAL216099806E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 71% | View |
Submit your RFQ for EMHB250ADA331MJA0G and get a quote within 24 hours.
