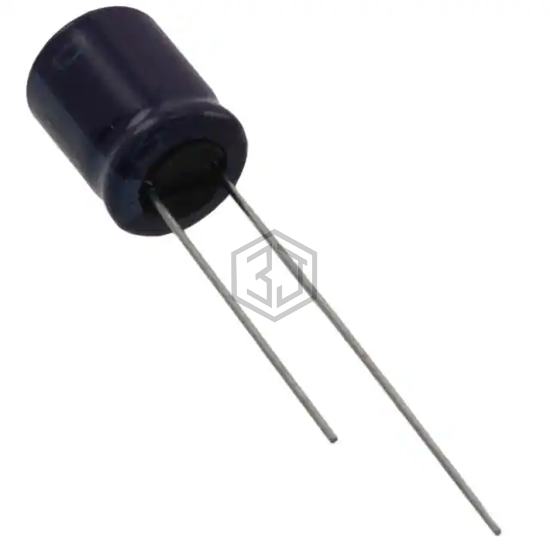

CAP ALUM 330UF 20% 25V RADIAL
ELXZ250ELL331MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 760 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1E331MPD6TD | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 87% | View |
| UPM1E331MPD6AA | Nichicon | CAP ALUM 25V POLAR | 87% | View |
| EEU-FC1V331LB | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V RADIAL | 71% | View |
| UPW1A331MPH | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 71% | View |
| 16YXA330MTA6.3X11 | Rubycon | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| RJA331M1JBK-1020S | Surge | CAP ALUM 63V POLAR | 70% | View |
Submit your RFQ for ELXZ250ELL331MJC5S and get a quote within 24 hours.
