CAP ALUM 680UF 20% 63V RADIAL

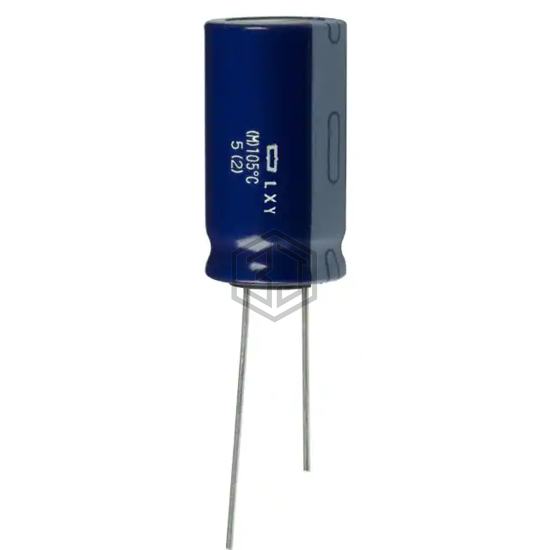

ELXY630ELL681ML30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.032 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.72 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215098686E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 95% | View |
| MAL226030681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 57% | View |
| ELXY160ETD681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 57% | View |
| 672D687H015EK5C | Vishay Sprague | CAP ALUM 680UF 15V RADIAL | 56% | View |
| UPA1C681MPD1TD | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 54% | View |
| 35WXA680MEFCG412.5X16 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 51% | View |
