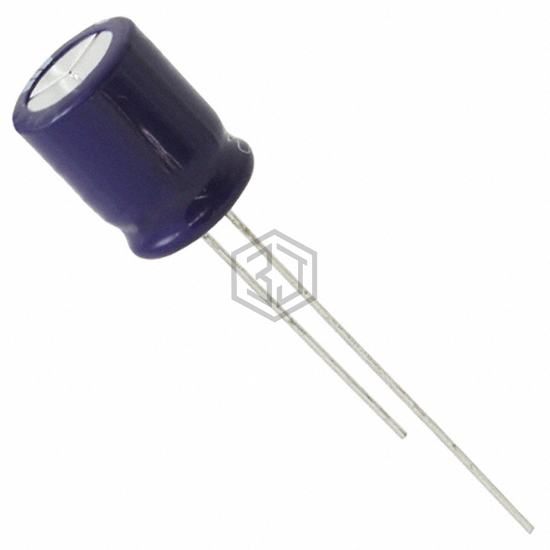

CAP ALUM 82UF 20% 50V RADIAL
ELXY500ELL820MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 82UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 192 mA @ 120 Hz |
| Ripple Current @ High Frequency | 480 mA @ 100 kHz |
| Impedance | 200 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKC00PF282H00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 50V RADIAL | 99% | View |
| RXK820M1HBK-0815S | Surge | CAP ALUM 50V POLAR | 86% | View |
| UPJ1H820MPD | Nichicon | CAP ALUM 82UF 20% 50V RADIAL | 85% | View |
| ELXY350ETD820MF15D | United Chemi-Con | CAP ALUM 82UF 20% 35V RADIAL | 79% | View |
| ELXY350EC3820MF15D | United Chemi-Con | CAP ALUM 82UF 20% 35V RADIAL | 79% | View |
| 860160473010 | Würth Elektronik | CAP ALUM 82UF 20% 25V RADIAL | 56% | View |
