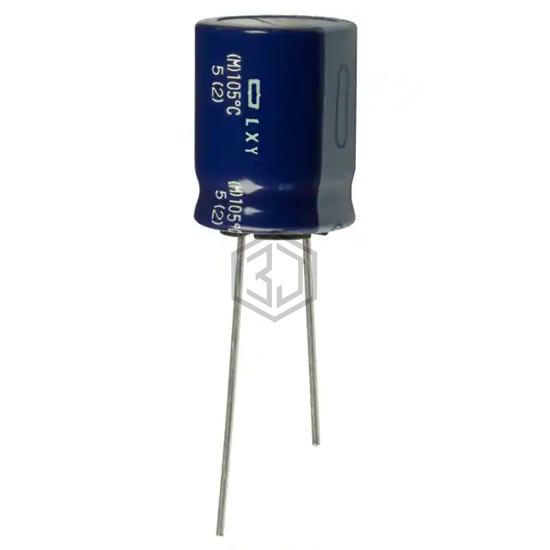

CAP ALUM 680UF 20% 50V RADIAL
ELXY500ELL681ML20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,245
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 852 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.42 A @ 100 kHz |
| Impedance | 50 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215031681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V RADIAL | 98% | View |
| ELXY350ETE681MK25S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 79% | View |
| MAL211827681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 40V AXIAL | 73% | View |
| ELXZ160ELL681MJ16S | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 66% | View |
| EY1C681MNN0820 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
| 678D687M6R3CD5D | Vishay Sprague | CAP ALUM 680UF 20% 6.3V RADIAL | 56% | View |
