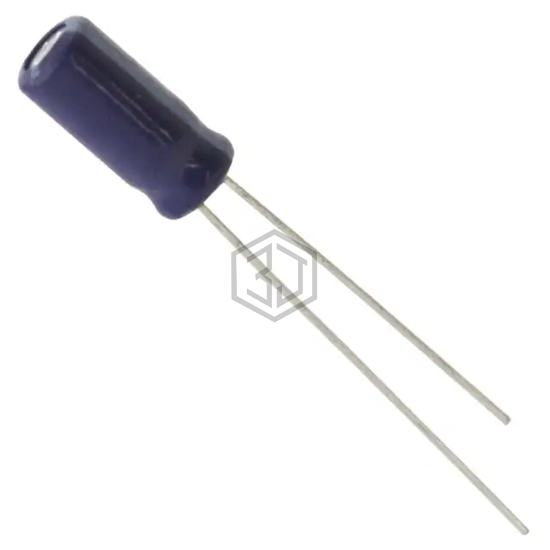

CAP ALUM 18UF 20% 50V RADIAL
ELXY500ELL180MEB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 18UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,222
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 51.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 129 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKC00AB218H00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 18UF 20% 50V RADIAL | 100% | View |
| UPV1H180MFD | Nichicon | CAP ALUM 18UF 20% 50V RADIAL | 98% | View |
| B41866C6186M008 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 88% | View |
| B41866C6186M000 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 88% | View |
| UPJ1H180MDD1TA | Nichicon | CAP ALUM 18UF 20% 50V RADIAL | 86% | View |
| 672D186H040BB5C | Vishay Sprague | CAP ALUM 18UF 40V RADIAL | 86% | View |
Submit your RFQ for ELXY500ELL180MEB5D and get a quote within 24 hours.
