CAP ALUM 1000UF 20% 50V RADIAL

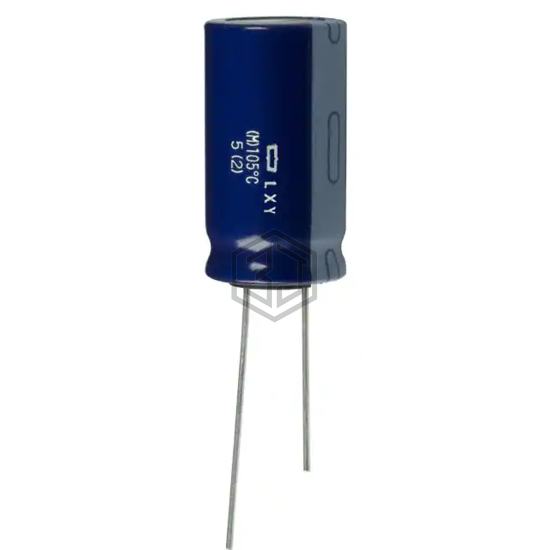

ELXY500ELL102ML30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,476
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.29 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.15 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL224691105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 95% | View |
| ELXZ630ELL102ML30S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 85% | View |
| MAL211917102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 40V AXIAL | 74% | View |
| 100PX1000MEFCGC18X35.5 | Rubycon | CAP ALUM 1000UF 20% 100V RADIAL | 58% | View |
| RJA102M1EBK-1020S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 51% | View |
| 517D108M025DG6SE3 | Vishay Sprague | CAP ALUM 1000UF 20% 25V RADIAL | 50% | View |
