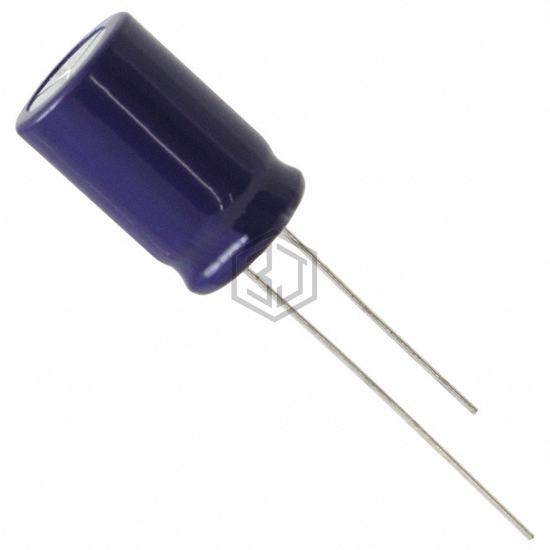

CAP ALUM 820UF 20% 25V RADIAL
ELXY250ELL821MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 804 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.34 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213696825E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 25V RADIAL | 97% | View |
| ELXV250ELL821MJ30S | United Chemi-Con | CAP ALUM 820UF 20% 25V RADIAL | 95% | View |
| EEU-FC1C821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 16V RADIAL | 82% | View |
| B41042A5827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 25V RADIAL | 80% | View |
| ELXV800ELL821MM35S | United Chemi-Con | CAP ALUM 820UF 20% 80V RADIAL | 68% | View |
| UPA1A821MPD6 | Nichicon | CAP ALUM 820UF 20% 10V RADIAL | 66% | View |
Submit your RFQ for ELXY250ELL821MK20S and get a quote within 24 hours.
