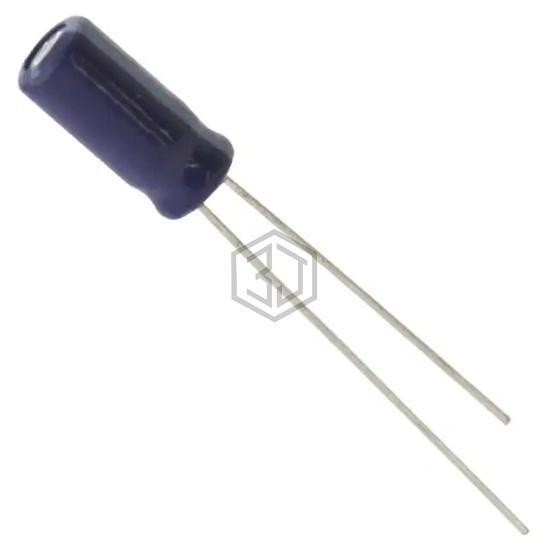

CAP ALUM 39UF 20% 25V RADIAL
ELXY250ELL390MEB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 39UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,011
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 65.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 163 mA @ 100 kHz |
| Impedance | 750 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1E390MFD1TA | Nichicon | CAP ALUM 39UF 20% 25V RADIAL | 92% | View |
| 860080472001 | Würth Elektronik | CAP ALUM 39UF 20% 25V RADIAL | 84% | View |
| EEU-FC1E390H | Panasonic Electronic Components | CAP ALUM 39UF 20% 25V RADIAL | 75% | View |
| 860080573002 | Würth Elektronik | CAP ALUM 39UF 20% 35V RADIAL | 60% | View |
| 678D396M063CC2D | Vishay Sprague | CAP ALUM 39UF 20% 63V RADIAL | 56% | View |
| 600D396F200DX5 | Vishay Sprague | CAP ALUM 39UF 200V AXIAL | 56% | View |
Submit your RFQ for ELXY250ELL390MEB5D and get a quote within 24 hours.
