CAP ALUM 1800UF 20% 25V RADIAL

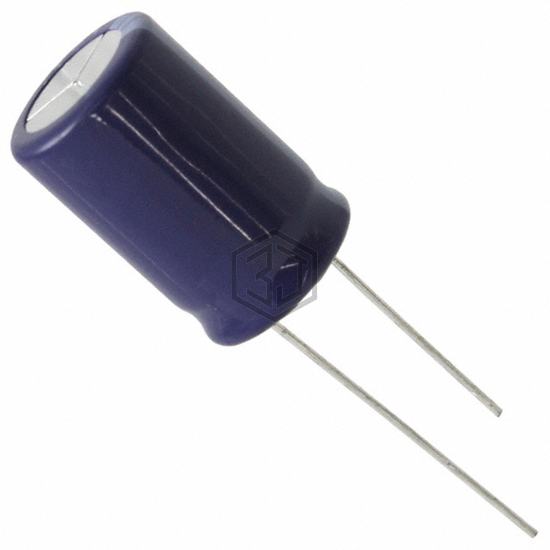

ELXY250ELL182ML25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,044
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.242 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.07 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D188M025EK3D | Vishay Sprague | CAP ALUM 1800UF 20% 25V RADIAL | 82% | View |
| ELBG350ELL182AL20S | United Chemi-Con | CAP ALUM 1800UF 35V RADIAL | 82% | View |
| MAL224650182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 80% | View |
| EEU-FC1V182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 78% | View |
| EEU-FC1A182 | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RADIAL | 72% | View |
| ELXZ350ELL182MK40S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 71% | View |
Submit your RFQ for ELXY250ELL182ML25S and get a quote within 24 hours.
