CAP ALUM 1800UF 20% 25V RADIAL

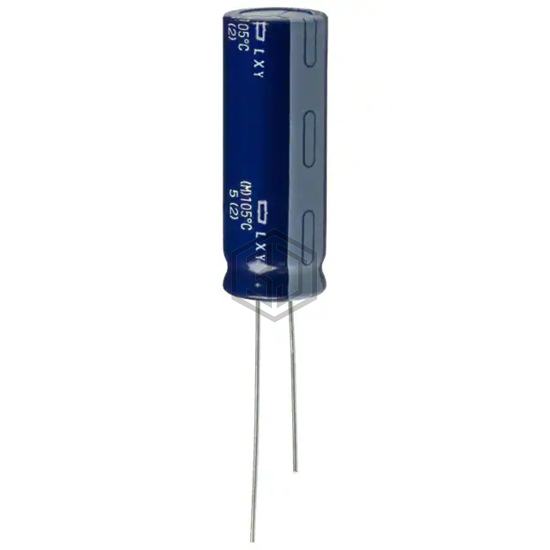

ELXY250ELL182MK35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,070
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.332 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.22 A @ 100 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 94% | View |
| B41890A5188M001 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 88% | View |
| MAL213630182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 86% | View |
| B41866D7188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 35V RADIAL | 79% | View |
| 860160578036 | Würth Elektronik | CAP ALUM 1800UF 20% 35V RADIAL | 71% | View |
| EEU-FC1H182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 50V RADIAL | 65% | View |
Submit your RFQ for ELXY250ELL182MK35S and get a quote within 24 hours.
