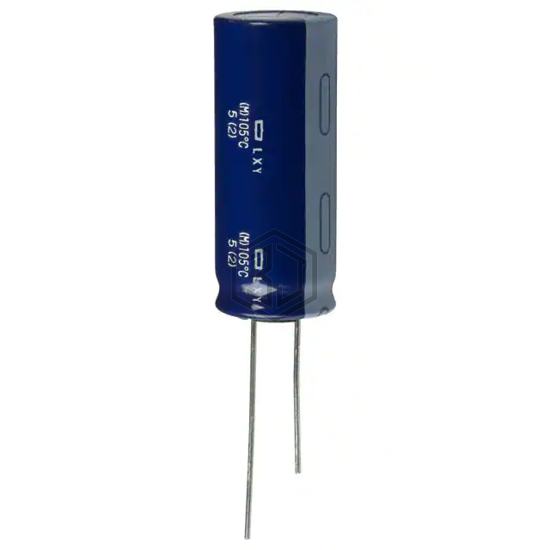

CAP ALUM 8200UF 20% 10V RADIAL
ELXY100ELL822ML40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 8200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,774
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.465 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1A822MHD | Nichicon | CAP ALUM 8200UF 20% 10V RADIAL | 98% | View |
| LXZ10VB822M16X35LL | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 96% | View |
| EEU-FC0J822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RADIAL | 86% | View |
| ELXZ160ELL822MM35S | United Chemi-Con | CAP ALUM 8200UF 20% 16V RADIAL | 76% | View |
| ELBK250ELL802ALN3S | United Chemi-Con | CAP ALUM 8000UF 25V RADIAL | 73% | View |
| B41888C4828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 16V RADIAL | 69% | View |
Submit your RFQ for ELXY100ELL822ML40S and get a quote within 24 hours.
