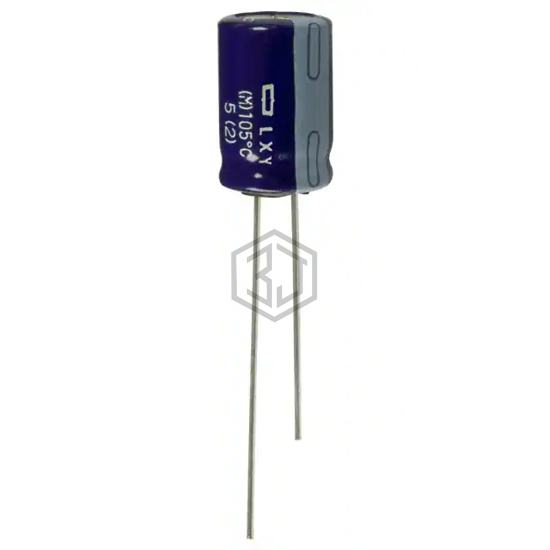

CAP ALUM 680UF 20% 10V RADIAL
ELXY100ELL681MJ16S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,031
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 495 mA @ 120 Hz |
| Ripple Current @ High Frequency | 825 mA @ 100 kHz |
| Impedance | 84 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V RADIAL | 95% | View |
| UBX1H681MHL | Nichicon | CAP ALUM 680UF 20% 50V RADIAL | 66% | View |
| 16WXA680MEFC10X9 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 64% | View |
| MAL215038681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 60% | View |
| MLSG681M200EB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 200V FLATPACK | 56% | View |
| UVY1E681MHD4 | Nichicon | CAP ALUM 680UF 20% 25V RADIAL | 56% | View |
