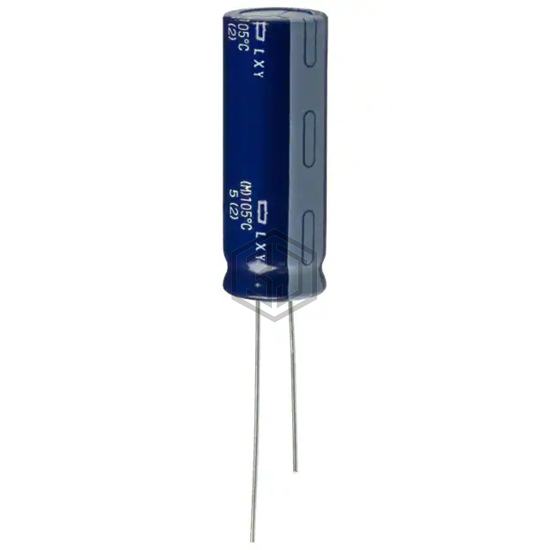

CAP ALUM 3300UF 20% 10V RADIAL
ELXY100ELL332MK35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3300UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,217
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.665 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.22 A @ 100 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY160ELL332MK40S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 84% | View |
| MAL213655332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 78% | View |
| 678D338M016FR3D | Vishay Sprague | CAP ALUM 3300UF 20% 16V RADIAL | 76% | View |
| 50PX3300MEFC18X35.5 | Rubycon | CAP ALUM 3300UF 20% 50V RADIAL | 75% | View |
| EEU-FC0J332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V RADIAL | 73% | View |
| ELXZ250ETS332MM25S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 71% | View |
Submit your RFQ for ELXY100ELL332MK35S and get a quote within 24 hours.
