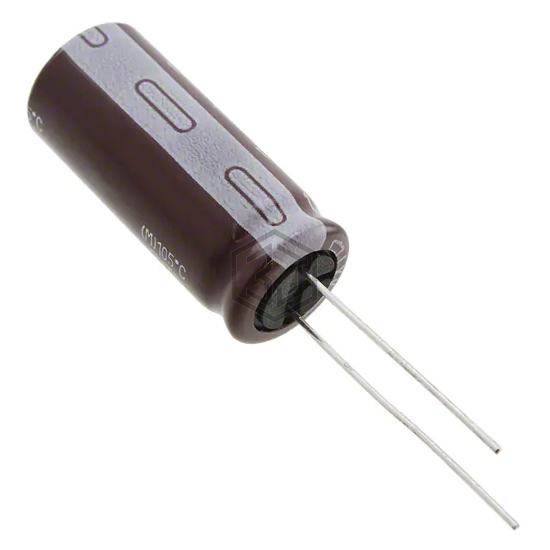

CAP ALUM 560UF 20% 63V RADIAL
ELXV630ELL561MK40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,126
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 535.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.53 A @ 100 kHz |
| Impedance | 51 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV630ELL561MM20S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 86% | View |
| ELXZ500ELL561MK25S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 77% | View |
| B41858C9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 100V RADIAL | 73% | View |
| 601D567F040FJ1 | Vishay Sprague | CAP ALUM 560UF 40V AXIAL | 71% | View |
| 567KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 50V RADIAL | 66% | View |
| 860160575026 | Würth Elektronik | CAP ALUM 560UF 20% 35V RADIAL | 65% | View |
Submit your RFQ for ELXV630ELL561MK40S and get a quote within 24 hours.
