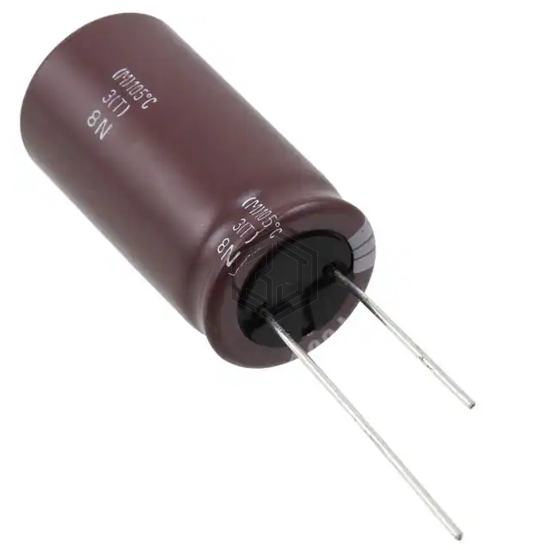

CAP ALUM 1000UF 20% 63V RADIAL
ELXV630ELL102MM35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,486
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 985 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.97 A @ 100 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ500ELL102ML25S | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 83% | View |
| MAL216061102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 79% | View |
| B41866C6108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 50V RADIAL | 77% | View |
| RXK102M1HBK-1340S | SURGE | CAP ALUM 1000UF 20% 50V RADIAL | 75% | View |
| MAL214066102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 73% | View |
| B41890B5108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 25V RADIAL | 72% | View |
Submit your RFQ for ELXV630ELL102MM35S and get a quote within 24 hours.
