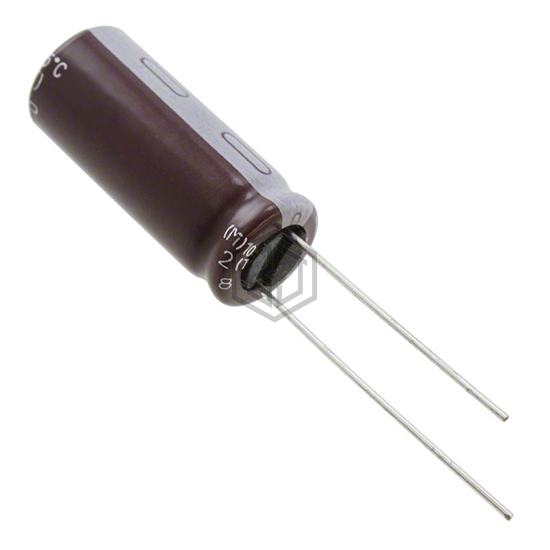

CAP ALUM 560UF 20% 25V RADIAL
ELXV250ETD561MJ25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,838
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 819 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.26 A @ 100 kHz |
| Impedance | 52 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 630D567M025EF5A | Vishay Sprague | CAP ALUM 560UF 20% 25V AXIAL | 100% | View |
| 630D567M025EF6A | Vishay Sprague | CAP ALUM 560UF 20% 25V AXIAL | 100% | View |
| 672D567H020ET5C | Vishay Sprague | CAP ALUM 560UF 20V RADIAL | 86% | View |
| B41890A4567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 16V RADIAL | 73% | View |
| 860160678031 | Würth Elektronik | CAP ALUM 560UF 20% 50V RADIAL | 57% | View |
| B41890A6567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for ELXV250ETD561MJ25S and get a quote within 24 hours.
