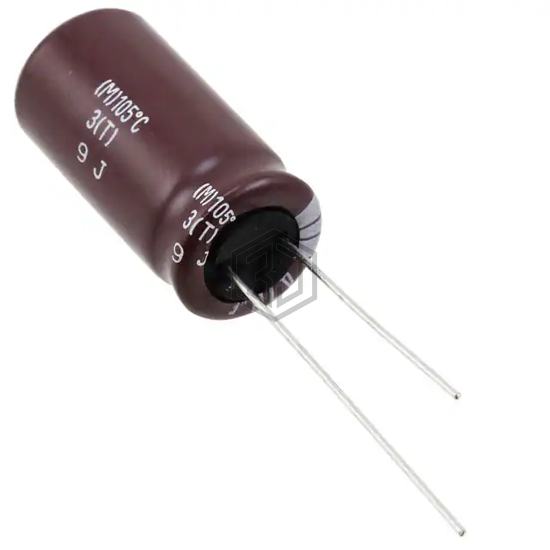

CAP ALUM 1000UF 20% 25V RADIAL
ELXV250ELL102MK25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,702
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.105 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW102M1EBK-1030S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 98% | View |
| ELXZ250ELL102MJ30S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 97% | View |
| B41888C5108M | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 25V RADIAL | 95% | View |
| EKMG101ELL102MM40S | United Chemi-Con | CAP ALUM 1000UF 20% 100V RADIAL | 73% | View |
| UBX1H102MHL | Nichicon | CAP ALUM 1000UF 20% 50V RADIAL | 71% | View |
| 25WXA1000MEFCG412.5X16 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 70% | View |
Submit your RFQ for ELXV250ELL102MK25S and get a quote within 24 hours.
