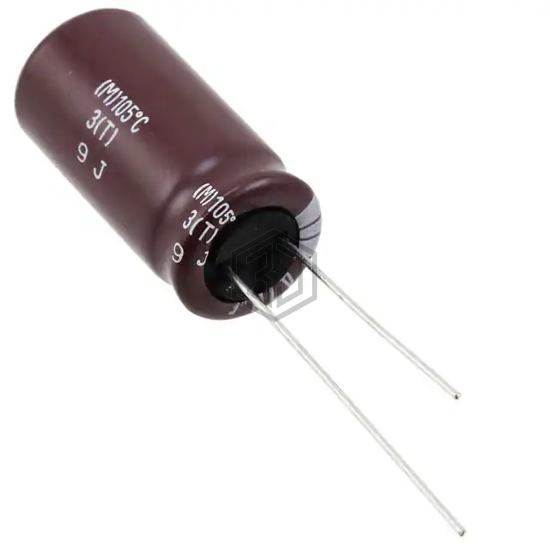

CAP ALUM 120UF 20% 100V RADIAL
ELXV101ELL121MK25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 120UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,267
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 364 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.04 A @ 100 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1H121MPD1TD | Nichicon | CAP ALUM 120UF 20% 50V RADIAL | 68% | View |
| UPJ1J121MHD6TO | Nichicon | CAP ALUM 120UF 20% 63V RADIAL | 68% | View |
| THAS121M200AA1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 200V FLATPACK | 67% | View |
| MAL213658121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 63V RADIAL | 66% | View |
| EG1H121MP50816F5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 62% | View |
| ELXY500ELL121MH20D | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for ELXV101ELL121MK25S and get a quote within 24 hours.
