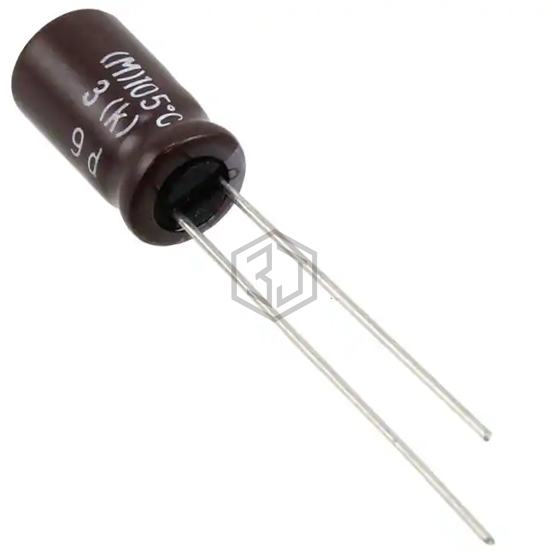

CAP ALUM 12UF 20% 100V RADIAL
ELXV101ELL120MFB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 12UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,949
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | 1.1 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A120MED1TA | Nichicon | CAP ALUM 12UF 20% 100V RADIAL | 80% | View |
| UPM2A120MED | Nichicon | CAP ALUM 12UF 20% 100V RADIAL | 80% | View |
| UPW1V120MDD1TP | Nichicon | CAP ALUM 12UF 20% 35V RADIAL | 69% | View |
| UPM1J120MDD | Nichicon | CAP ALUM 12UF 20% 63V RADIAL | 67% | View |
| EEU-FC1J120 | Panasonic Electronic Components | CAP ALUM 12UF 20% 63V RADIAL | 57% | View |
| EEU-FC1J120H | Panasonic Electronic Components | CAP ALUM 12UF 20% 63V RADIAL | 57% | View |
Submit your RFQ for ELXV101ELL120MFB5D and get a quote within 24 hours.
