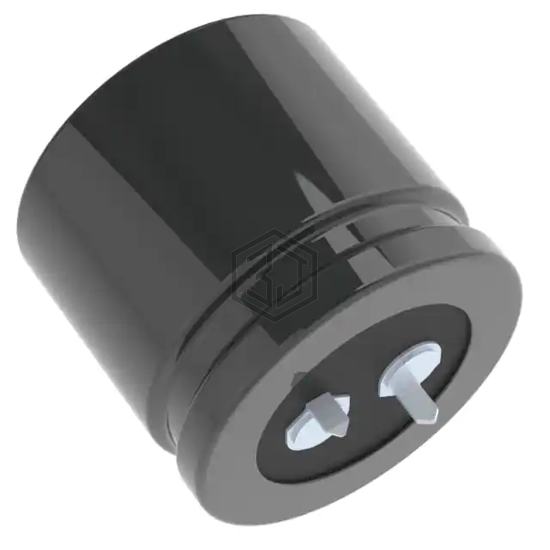

CAP ALUM 560UF 20% 315V SNAP
ELXS3B1VSN561MA30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 9,692
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.02 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8886 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.280" (32.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 350MXC560MEFC30X50 | Rubycon | CAP ALUM 560UF 20% 350V SNAP | 92% | View |
| B43504A2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 87% | View |
| 220MXC560MEFC25X35 | Rubycon | CAP ALUM 560UF 20% 220V SNAP | 81% | View |
| LGG2E561MELB25 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 77% | View |
| LAK2D561MELB35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 69% | View |
| 35ZLK560MT810X25 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 59% | View |
Submit your RFQ for ELXS3B1VSN561MA30S and get a quote within 24 hours.
