CAP ALUM 680UF 20% 80V SNAP

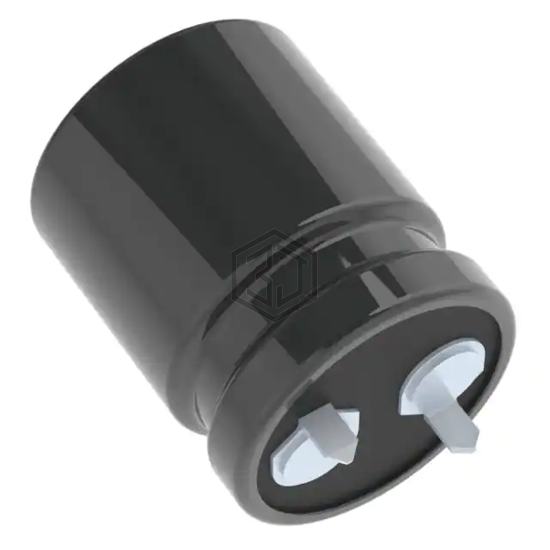

ELXG800VSN681MP25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 970 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.164 A @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160375029 | Würth Elektronik | CAP ALUM 680UF 20% 16V RADIAL | 68% | View |
| ELXZ630ELL681MM20S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 60% | View |
| 25PX680MEFC10X12.5 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 58% | View |
| EEU-FM1C681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 58% | View |
| VHT680M6.3 | NTE Electronics, Inc | CAP ALUM 680UF 20% 6.3V RADIAL | 56% | View |
| EKY-100ELL681MJC5S | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 55% | View |
Submit your RFQ for ELXG800VSN681MP25S and get a quote within 24 hours.
