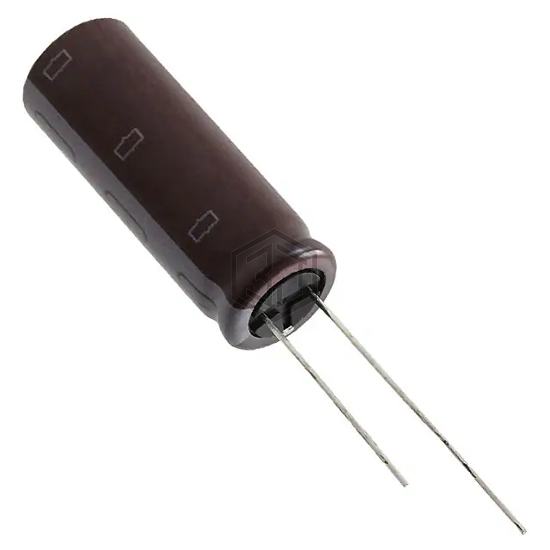

CAP ALUM 820UF 20% 63V RADIAL
EKZN630ELL821MK35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,061
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.824 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.04 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE500EC3821MK35S | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 91% | View |
| LKX2D821MESA45 | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 76% | View |
| 381LX821M180J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 180V SNAP | 75% | View |
| 381LX821M180K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 180V SNAP | 75% | View |
| 860040881014 | Würth Elektronik | CAP ALUM 820UF 20% 100V RADIAL | 74% | View |
| MAL225922821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 200V SNAP | 62% | View |
Submit your RFQ for EKZN630ELL821MK35S and get a quote within 24 hours.
