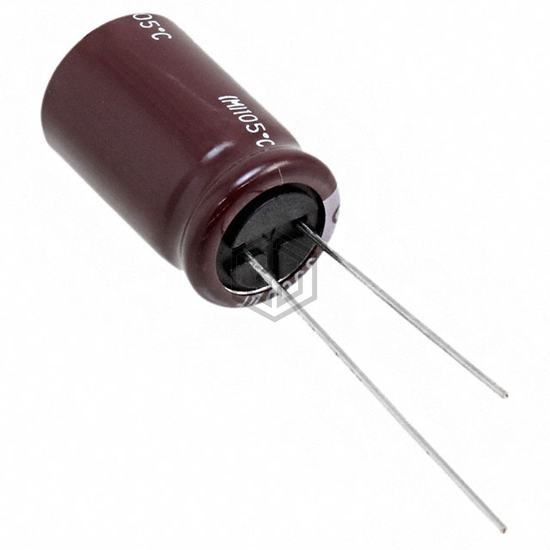

CAP ALUM 390UF 20% 63V RADIAL
EKZN630ELL391MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,347
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 995 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.99 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35ZLH390MEFCT78X20 | Rubycon | CAP ALUM 390UF 20% 35V RADIAL | 73% | View |
| B43252D1397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 160V SNAP | 73% | View |
| LGJ2Z391MELC15 | Nichicon | CAP ALUM 390UF 20% 180V SNAP | 72% | View |
| 200TXW390MEFR18X35 | Rubycon | CAP ALUM 390UF 20% 200V RADIAL | 70% | View |
| LGU2P391MELA | Nichicon | CAP ALUM 390UF 20% 220V SNAP | 69% | View |
| MAL217250471E3 | Vishay Beyschlag/Draloric/BC Components | 470UF 35V 10X20MM 105C 6000H | 68% | View |
