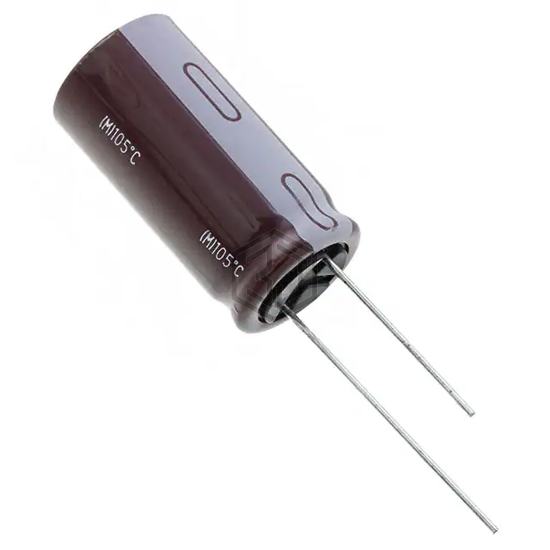

CAP ALUM 1200UF 20% 63V RADIAL
EKZN630ELL122MLN3S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,260
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.968 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.28 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 63V RADIAL | 88% | View |
| MAL212648122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 63V AXIAL | 79% | View |
| EEU-FM1V122S | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 76% | View |
| 381LQ122M180K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 180V SNAP | 75% | View |
| EEU-FK1V122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RAD TH | 74% | View |
| MAL213630122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 63% | View |
Submit your RFQ for EKZN630ELL122MLN3S and get a quote within 24 hours.
