CAP ALUM 470UF 20% 50V RADIAL

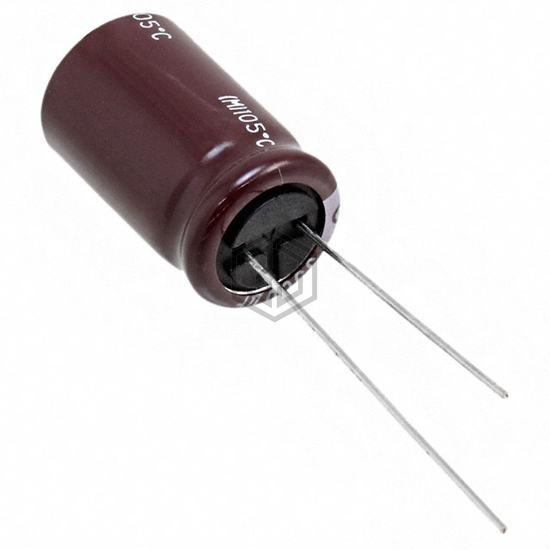

EKZN500ELL471MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | 32 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHD1V471MPD1TD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 78% | View |
| 100ZL470MEFCGC16X35.5 | Rubycon | CAP ALUM 470UF 20% 100V RADIAL | 75% | View |
| MALREKE00KK347L00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 100V RADIAL | 75% | View |
| 381LX471M180K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 180V SNAP | 71% | View |
| 672D477H025DS5J | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 56% | View |
| ESC477M025AH2EA | KEMET | CAP ALUM 470UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for EKZN500ELL471MK20S and get a quote within 24 hours.
