CAP ALUM 820UF 20% 35V RADIAL

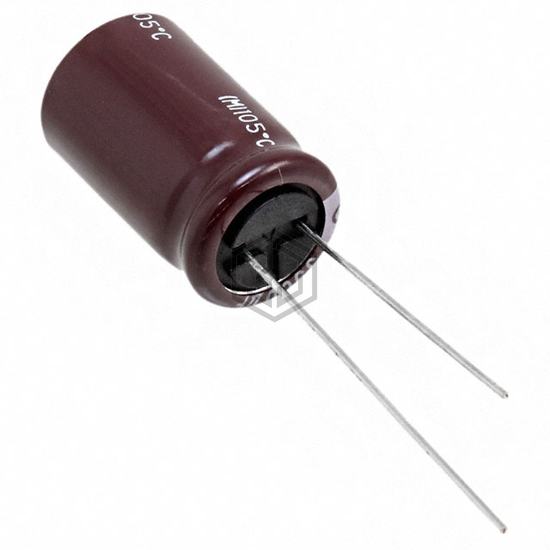

EKZN350ELL821MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,801
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHV1V821MHD | Nichicon | CAP ALUM 820UF 20% 35V RADIAL | 93% | View |
| UPJ1V821MHD1TO | Nichicon | CAP ALUM 820UF 20% 35V RADIAL | 85% | View |
| EEU-FM1H821SB | Panasonic Electronic Components | CAP ALUM 820UF 20% 50V RADIAL | 79% | View |
| 381LX821M200K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 200V SNAP | 71% | View |
| 381LQ821M180J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 180V SNAP | 71% | View |
| 16YXG820MEFC12.5X16 | Rubycon | CAP ALUM 820UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for EKZN350ELL821MK20S and get a quote within 24 hours.
