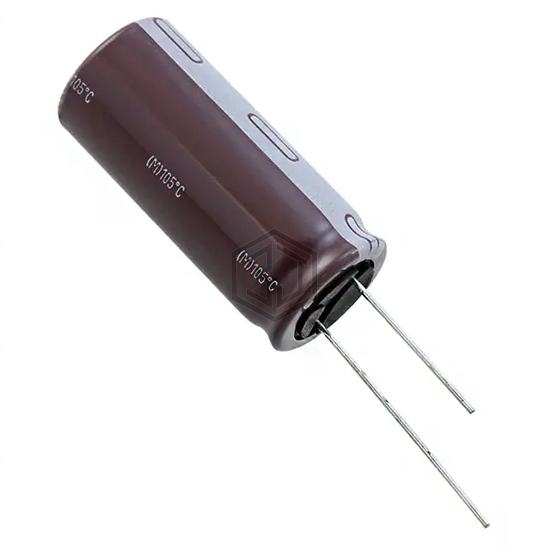

CAP ALUM 6800UF 20% 25V RADIAL
EKZN250ELL682ML40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.893 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.58 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for EKZN250ELL682ML40S and get a quote within 24 hours.
