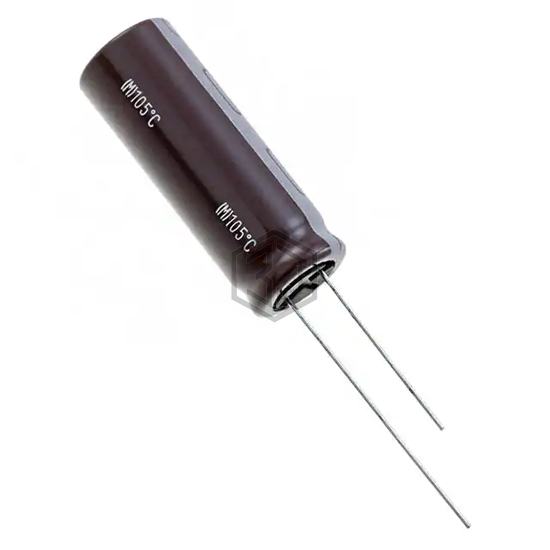

CAP ALUM 5600UF 20% 10V RADIAL
EKZN100ELL562MK35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,548
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.502 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.12 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS1A562S | Panasonic Electronic Components | CAP ALUM 5600UF 20% 10V RADIAL | 89% | View |
| 10ZLH5600MEFCG412.5X35 | Rubycon | CAP ALUM 5600UF 20% 10V RADIAL | 86% | View |
| 10ZLQ5600MEFC12.5X25 | Rubycon | CAP ALUM 5600UF 20% 10V RADIAL | 82% | View |
| EEU-FM0J562L | Panasonic Electronic Components | CAP ALUM 5600UF 20% 6.3V RADIAL | 79% | View |
| 100MXC5600MEFCSN35X50 | Rubycon | CAP ALUM 5600UF 20% 100V SNAP | 73% | View |
| EKY-6R3ELL562MK35S | United Chemi-Con | CAP ALUM 5600UF 20% 6.3V RADIAL | 70% | View |
Submit your RFQ for EKZN100ELL562MK35S and get a quote within 24 hours.
