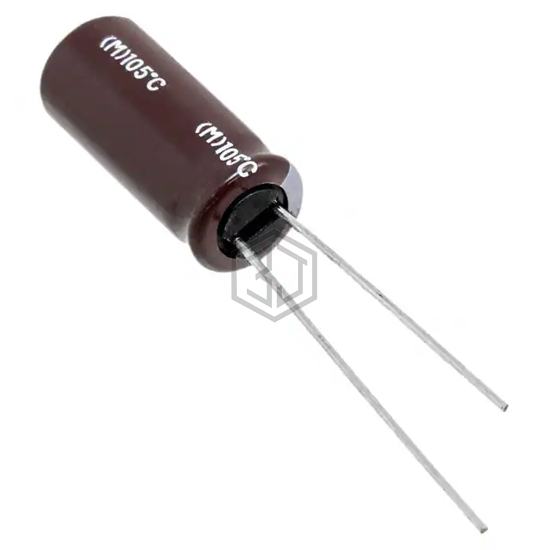

CAP ALUM 1000UF 20% 10V RADIAL
EKZN100ELL102MH20D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,707
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.176 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.96 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213635102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 72% | View |
| EEU-FC1J102U | Panasonic Electronic Components | CAP ALUM 1000UF 20% 63V RADIAL | 64% | View |
| 100YXH1000MEFCGC18X40 | Rubycon | CAP ALUM 1000UF 20% 100V RADIAL | 61% | View |
| MAL211925102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 16V AXIAL | 58% | View |
| 860240378009 | Würth Elektronik | CAP ALUM 1000UF 20% 16V RADIAL | 57% | View |
| LKX2E102MESC35 | Nichicon | CAP ALUM 1000UF 20% 250V SNAP | 51% | View |
Submit your RFQ for EKZN100ELL102MH20D and get a quote within 24 hours.
