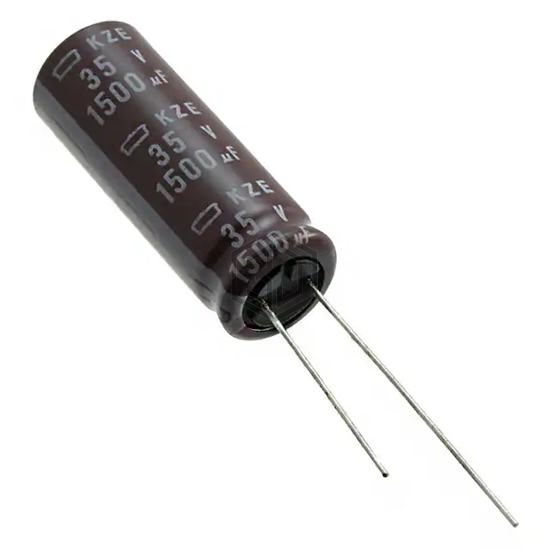

CAP ALUM 1500UF 20% 35V RADIAL
EKZE350ELL152MK35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.4 A @ 100 kHz |
| Impedance | 15 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXH1500MEFC16X35.5 | Rubycon | CAP ALUM 1500UF 20% 50V RADIAL | 85% | View |
| EEU-FR1E152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 83% | View |
| 860160578034 | Würth Elektronik | CAP ALUM 1500UF 20% 35V RADIAL | 80% | View |
| EGXF630ELL152MM30S | United Chemi-Con | CAP ALUM 1500UF 20% 63V RAD TH | 73% | View |
| LGG2C152MELC30 | Nichicon | CAP ALUM 1500UF 20% 160V SNAP | 72% | View |
| LGG2C152MELA45 | Nichicon | CAP ALUM 1500UF 20% 160V SNAP | 72% | View |
Submit your RFQ for EKZE350ELL152MK35S and get a quote within 24 hours.
