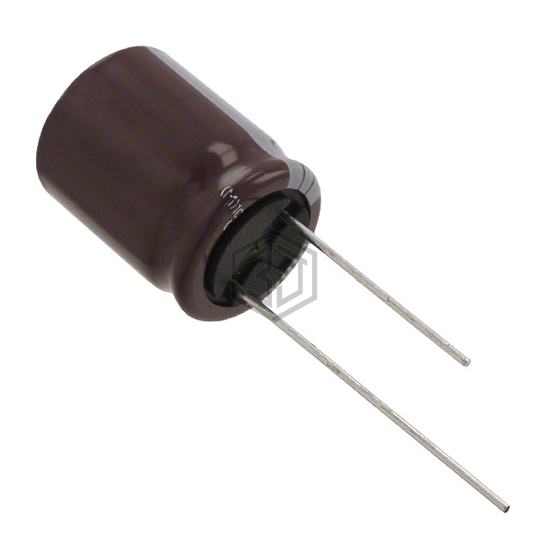

CAP ALUM 560UF 20% 100V RADIAL
EKZE101EC5561MLP1S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,316
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35ZT560M12.5X25 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 75% | View |
| EGXF500ELL561MJ30S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL TH | 71% | View |
| LGR2E561MELA50 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 66% | View |
| 860160575026 | Würth Elektronik | CAP ALUM 560UF 20% 35V RADIAL | 61% | View |
| EEU-FM1V561L | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL | 59% | View |
| 672D567H020DS2C | Vishay Sprague | CAP ALUM 560UF 20V RADIAL | 56% | View |
