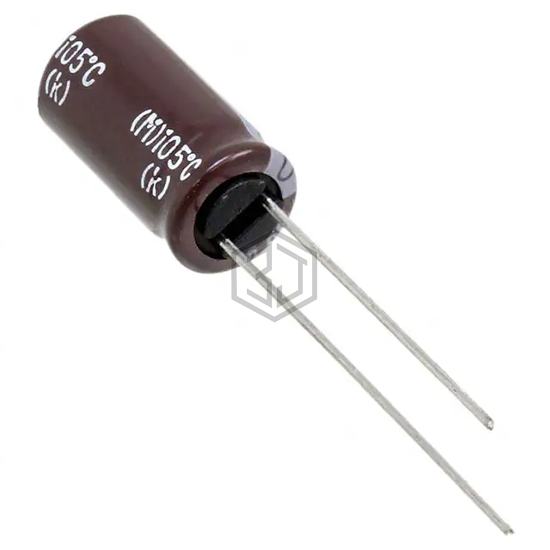

CAP ALUM 56UF 20% 80V RADIAL
EKYB800ELL560MH15D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 56UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 9,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 234 mA @ 120 Hz |
| Ripple Current @ High Frequency | 585 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE630ELL560MHB5D | United Chemi-Con | CAP ALUM 56UF 20% 63V RADIAL | 82% | View |
| 100YXH56MEFC8X20 | Rubycon | CAP ALUM 56UF 20% 100V RADIAL | 76% | View |
| UAQ2G560MHD | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 68% | View |
| UPW1V560MDD | Nichicon | CAP ALUM 56UF 20% 35V RADIAL | 56% | View |
| 420HXW56MEFR10X40 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 53% | View |
| UAS2D560MHD3TO | Nichicon | CAP ALUM 56UF 20% 200V RADIAL | 53% | View |
Submit your RFQ for EKYB800ELL560MH15D and get a quote within 24 hours.
