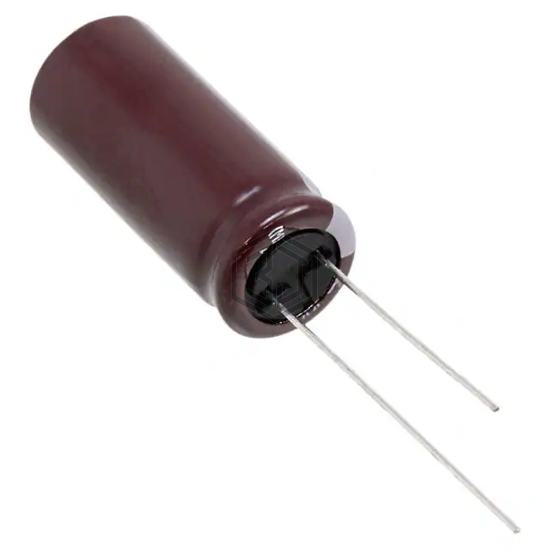

CAP ALUM 470UF 20% 80V RADIAL
EKYB800ELL471MK30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 6,126
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 975 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.95 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1H471MPD | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 78% | View |
| EPAG201ELL471MM40S | United Chemi-Con | CAP ALUM 470UF 20% 200V RADIAL | 69% | View |
| MAL212019471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 100V AXIAL | 66% | View |
| LKX2D471MESA30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 66% | View |
| LGU2D471MELZ | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 65% | View |
| B43252H2477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 63% | View |
Submit your RFQ for EKYB800ELL471MK30S and get a quote within 24 hours.
