CAP ALUM 390UF 20% 80V RADIAL

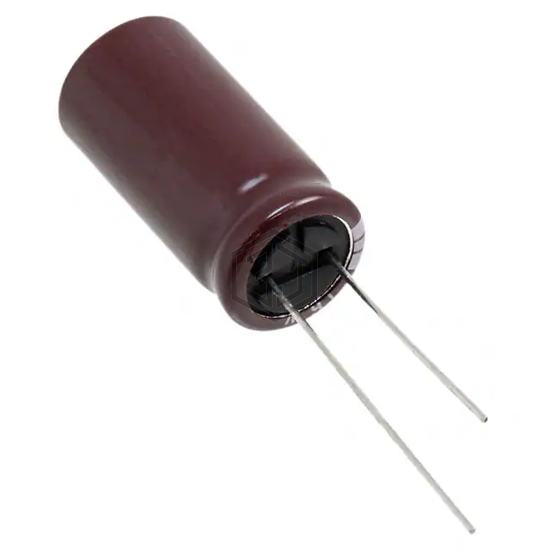

EKYB800ELL391MK25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 390UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,926
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 810 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.62 A @ 100 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXH390MEFC16X31.5 | Rubycon | CAP ALUM 390UF 20% 100V RADIAL | 89% | View |
| 100YXG390MEFCGC18X20 | Rubycon | CAP ALUM 390UF 20% 100V RADIAL | 86% | View |
| 63ZLJ390M10X25 | Rubycon | CAP ALUM 390UF 20% 63V RADIAL | 74% | View |
| UPA1V391MPD | Nichicon | CAP ALUM 390UF 20% 35V RADIAL | 72% | View |
| 25ZLK390M10X12.5 | Rubycon | CAP ALUM 390UF 20% 25V RADIAL | 67% | View |
| EGPD101ELL391ML25H | United Chemi-Con | CAP ALUM 390UF 20% 100V RADIAL | 67% | View |
Submit your RFQ for EKYB800ELL391MK25S and get a quote within 24 hours.
