CAP ALUM 1800UF 20% 6.3V RADIAL

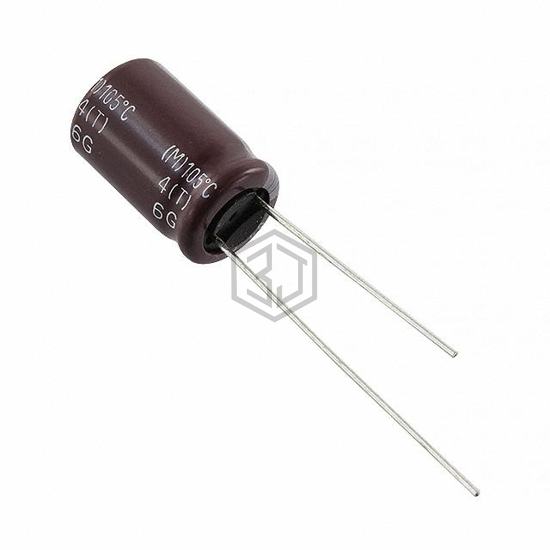

EKYB6R3ELL182MJ16S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 3,673
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | 49 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY100ELL182MK20S | United Chemi-Con | CAP ALUM 1800UF 20% 10V RADIAL | 85% | View |
| ELXV100ETE182MK20S | United Chemi-Con | CAP ALUM 1800UF 20% 10V RADIAL | 84% | View |
| 860020275019 | Würth Elektronik | CAP ALUM 1800UF 20% 10V RADIAL | 78% | View |
| EEU-FS1A182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RADIAL | 65% | View |
| 10ZLK1800MT810X25 | Rubycon | CAP ALUM 1800UF 20% 10V RADIAL | 60% | View |
| EEU-TP1E182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RADIAL | 56% | View |
